Performance Doorsets
Johan Doors Ltd is a supplier of BM Trada certifire approved fire rated doorsets. From our 30,000 sq/ft factory we bespoke manufacture fire rated timber doors and screens.
- NFR / FD30 / FD30s / FD60 / FD60s / FD90s / FD120s
- Acoustic Rated up to 47Db
- Veneer / Laminate / Paint Grade / Factory Finished
- Flush / Routered / Plant-on Mould / Mortice and Tenon
- PAS24 Enhanced Fire and Security / Encapsulated / Lead Lined and X-Ray

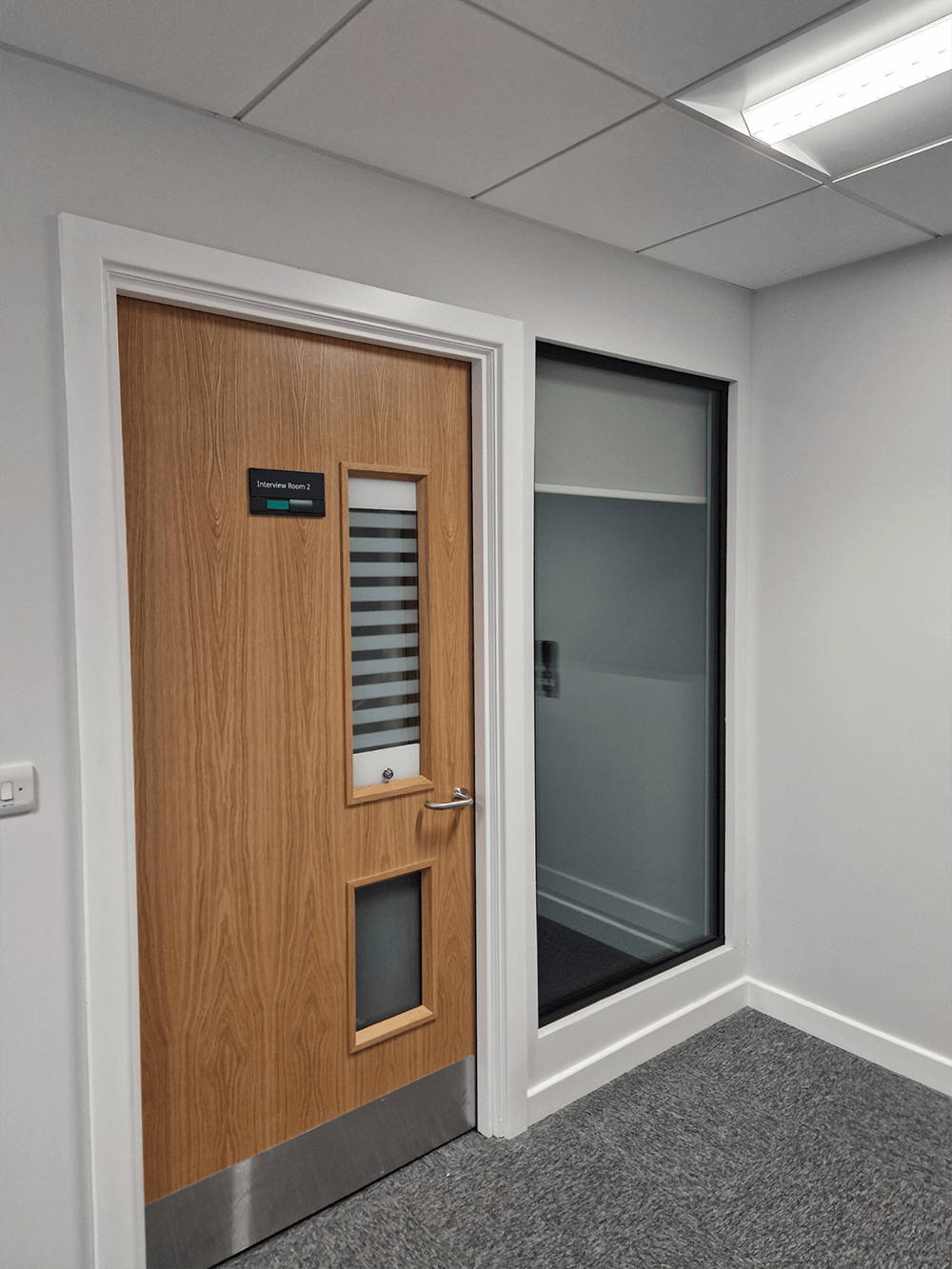

Flush Doorsets
- BM Trada Certified
- Heavy Duty and Severe Duty Solid Door Core options
- NFR / FD30 / FD30s / FD60 / FD60s / FD90s / FD120s
- Veneer / Laminate / Paint Grade / Factory Finish
- Acoustic Rated up to 47Db*
- Vision Panel / Fanlight / Side screen Options

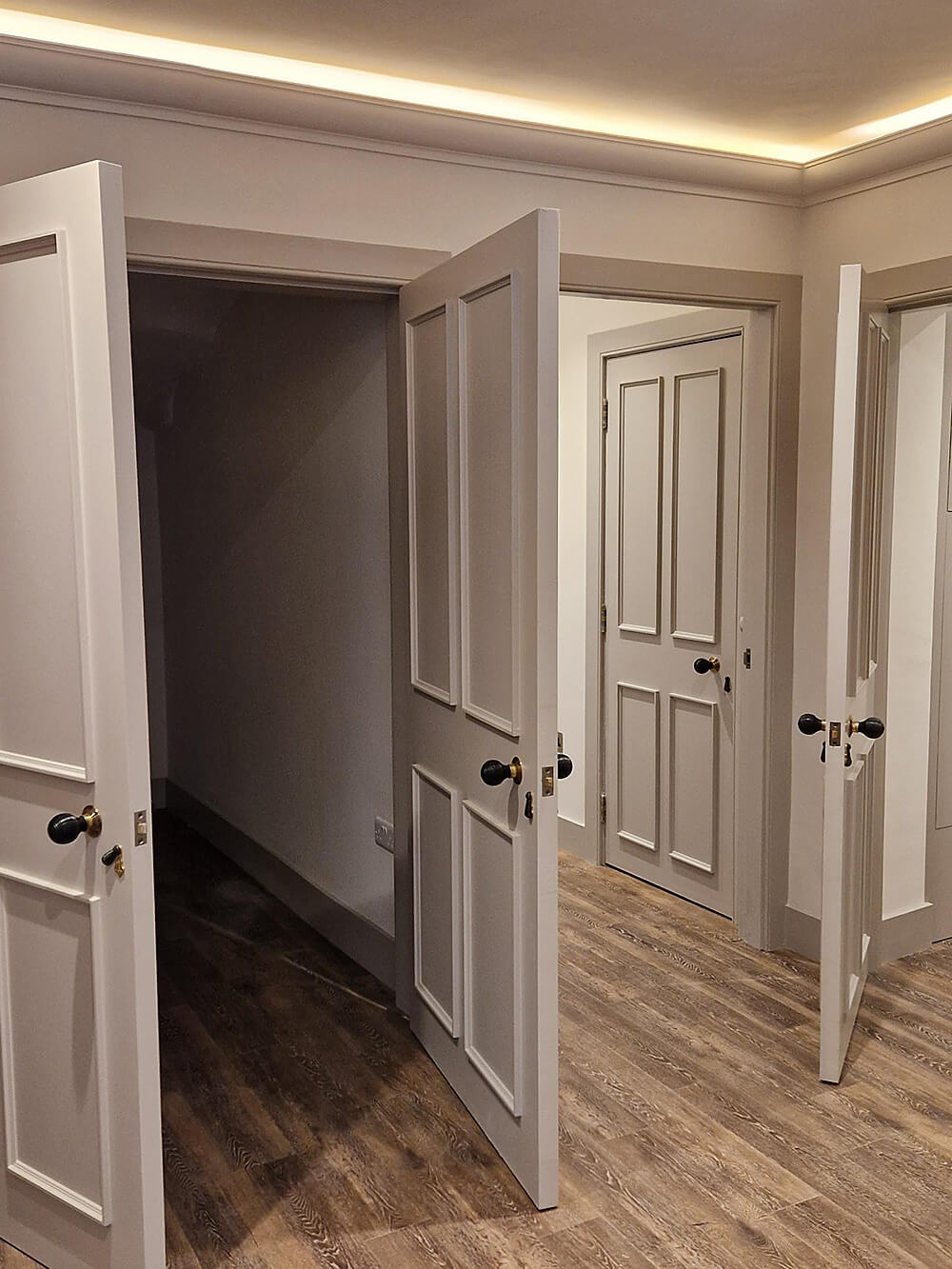

Plant on Mould Doorsets
Johan Doors Ltd have vast experience working of Heritage and Listed Building projects, alongside our traditional handcrafted mortice and tenon doors we have introduced our Plant On Range where Value engineering or budget restrictions are required.
- BM Trada Certified
- Heavy Duty and Severe Duty Solid Door Core options
- NFR / FD30 / FD30s / FD60 / FD60s / FD90s / FD120s
- Veneer / Laminate / Paint Grade / Factory Finish
- Acoustic Rated up to 47Db*
- Vision Panel / Fanlight / Side screen Options

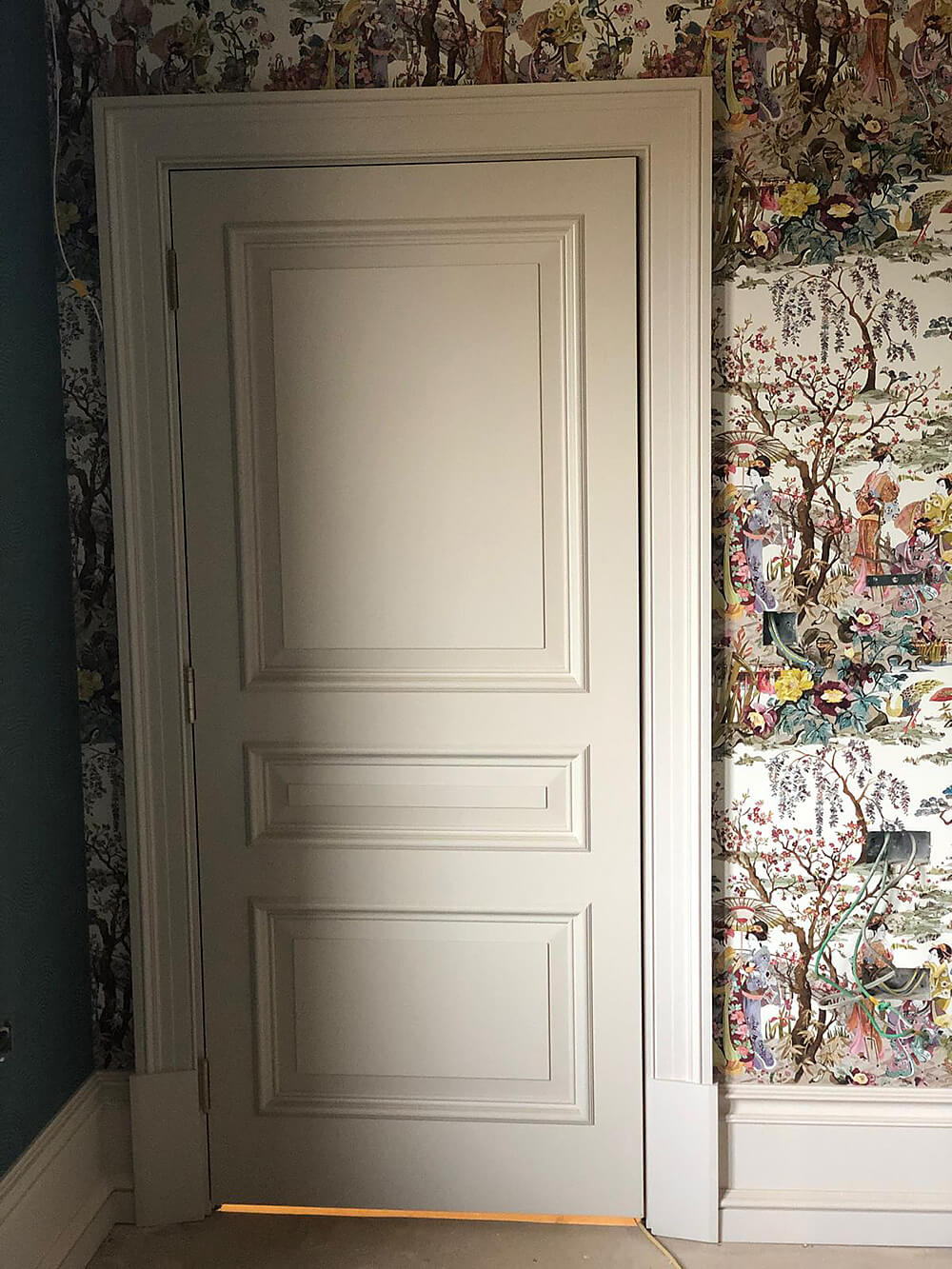

Traditional Doorsets
Johan Doors Ltd have vast experience working of Heritage and Listed Building projects, alongside our traditional handcrafted mortice and tenon doors we have introduced our Routered range due to the demand to satisfy both Aesthetics of heritage doors and most up to date ironmongery requirements such as concealed closers and access control.
- BM Trada Certified
- Heavy Duty and Severe Duty Solid Door Core options
- Non-Fire Rated / FD30s / FD60s / FD90s / FD120s
- Veneer / Laminate / Paint Grade / Factory Finish
- Acoustic Rated up to 43Db*
- Vision Panel / Fanlight / Side screen Options

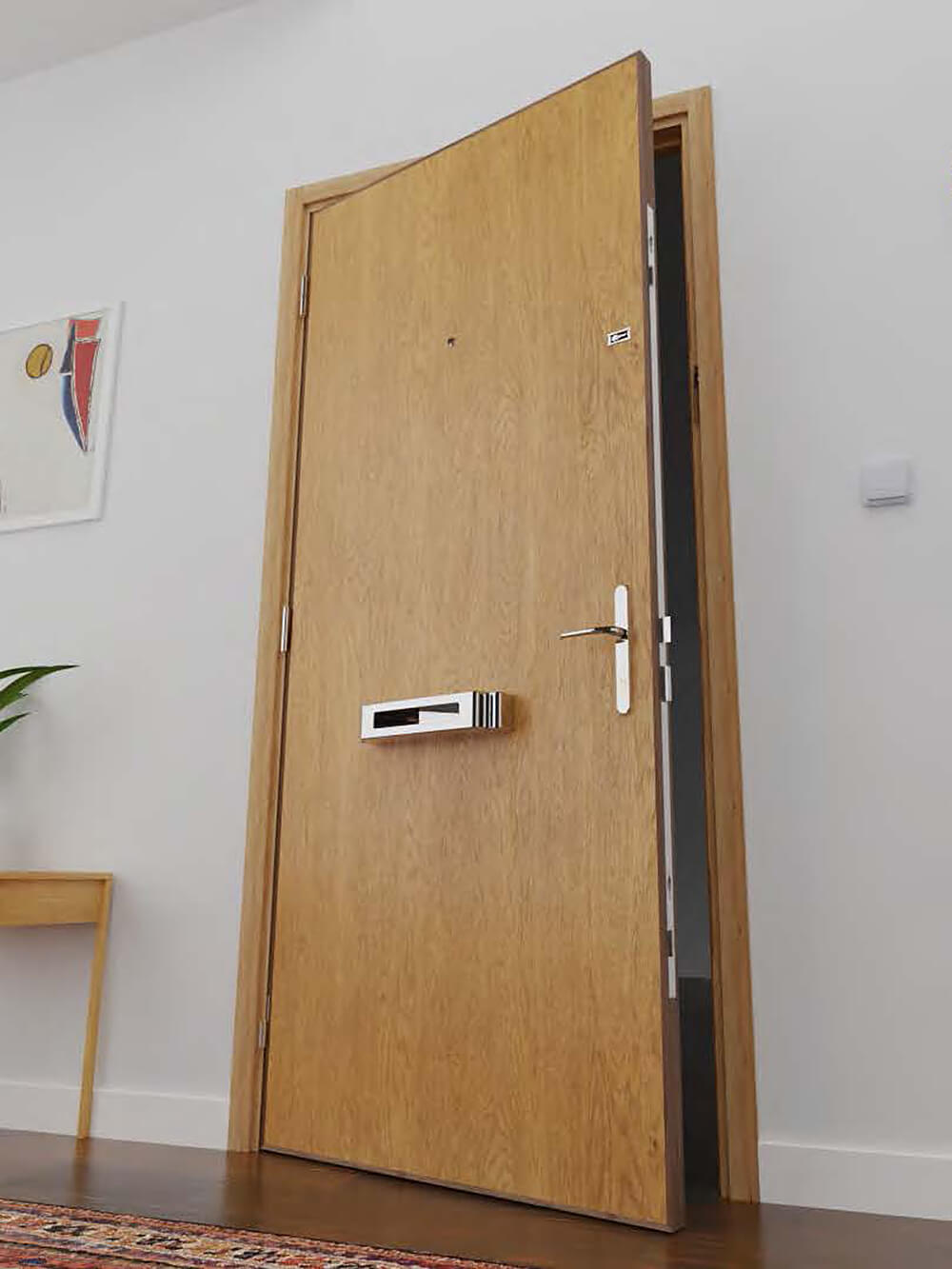

PAS24 Doorsets
- BM Trada Certified
- The dual scope system is certified by the Q Mark Enhanced Security Scheme. The system has been tested to PAS24: 2016.
- FD30s and Enhanced Security
- Choice of Strebord (Solid Particleboard) or Stredor (Solid Timber) for door leaf construction
- Evidence to support both 44mm and54mm door leaf thicknesses
- Auto-firing, multi-point security lock
- Economically designed timber framesection (nominal 2” x 4” section)
- Includes evidence for both overhead and jamb mounted concealed automatic closing devices
- Options for key/key and key/thumbturncylinders
- Up to 1047mm x 2402mm leaf sizes for fire and security
- Provision for glazed apertures using fire rated P1A glazing tested to BS 476: Part 22, BS EN 1634-1,BS EN 1634-3, PAS 24:2016, BS 6375-1, BS6375-2 & BS 6375-3

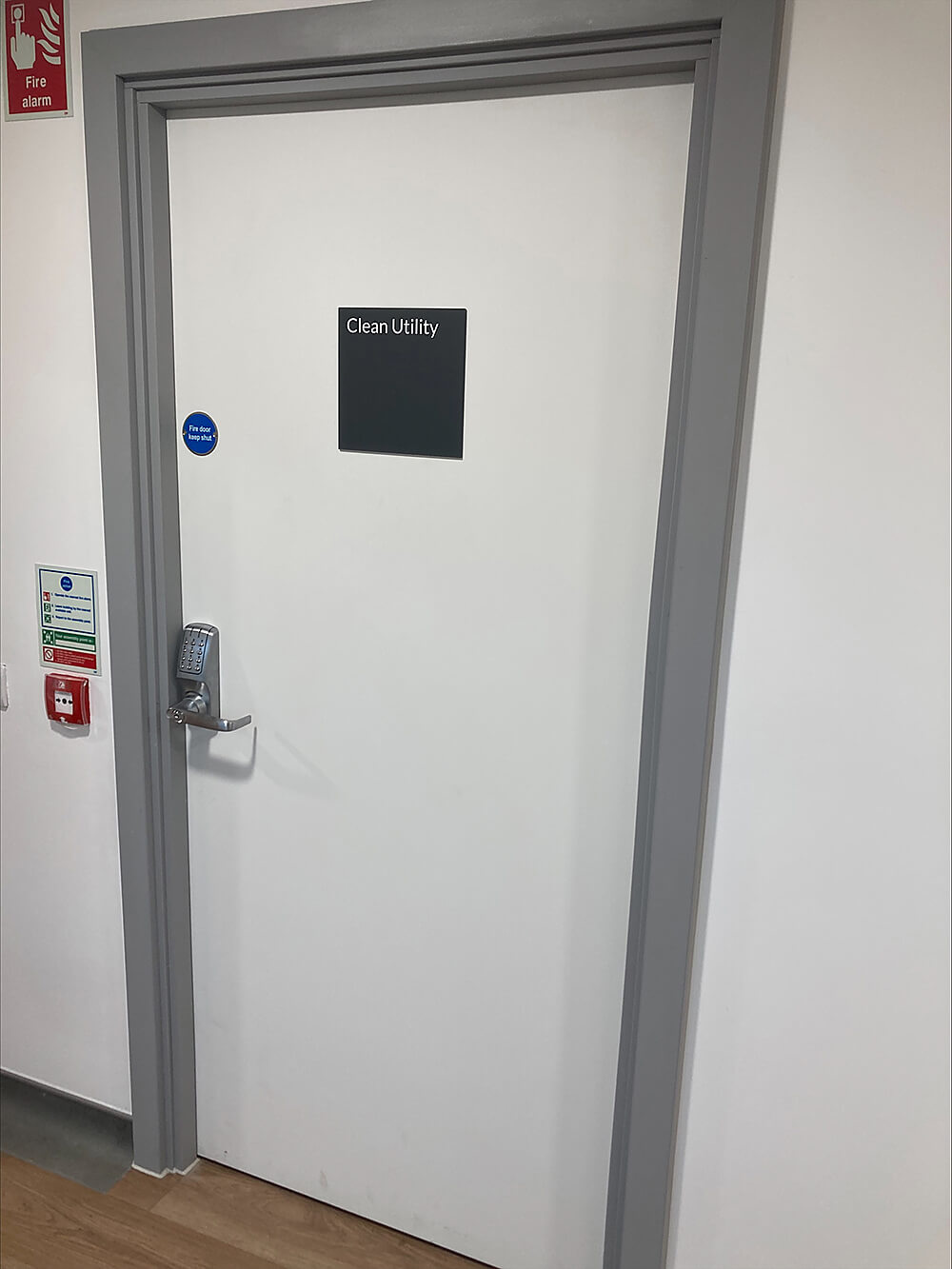

Encapsulated
Robust in construction, yet stylish in appearance, Johan Impact Doors have been designed to provide a long lasting and low maintenance solution for many challenging environments. Our tried and tested Johan material provides an impervious surface finish, when applied to door faces, edges and door frames. It is resistant to damage from impact, bacterial growth and many chemicals.
- Bm trada certified
- NFR / FD30 / FD30s / FD60 / FD60s / FD90s / FD120s
- Acoustic Rated up to 47Db
- Impact resistant cladding
- Door edge protection
- Door frame protection
- Glazing configurations options
- PVC Colour Options

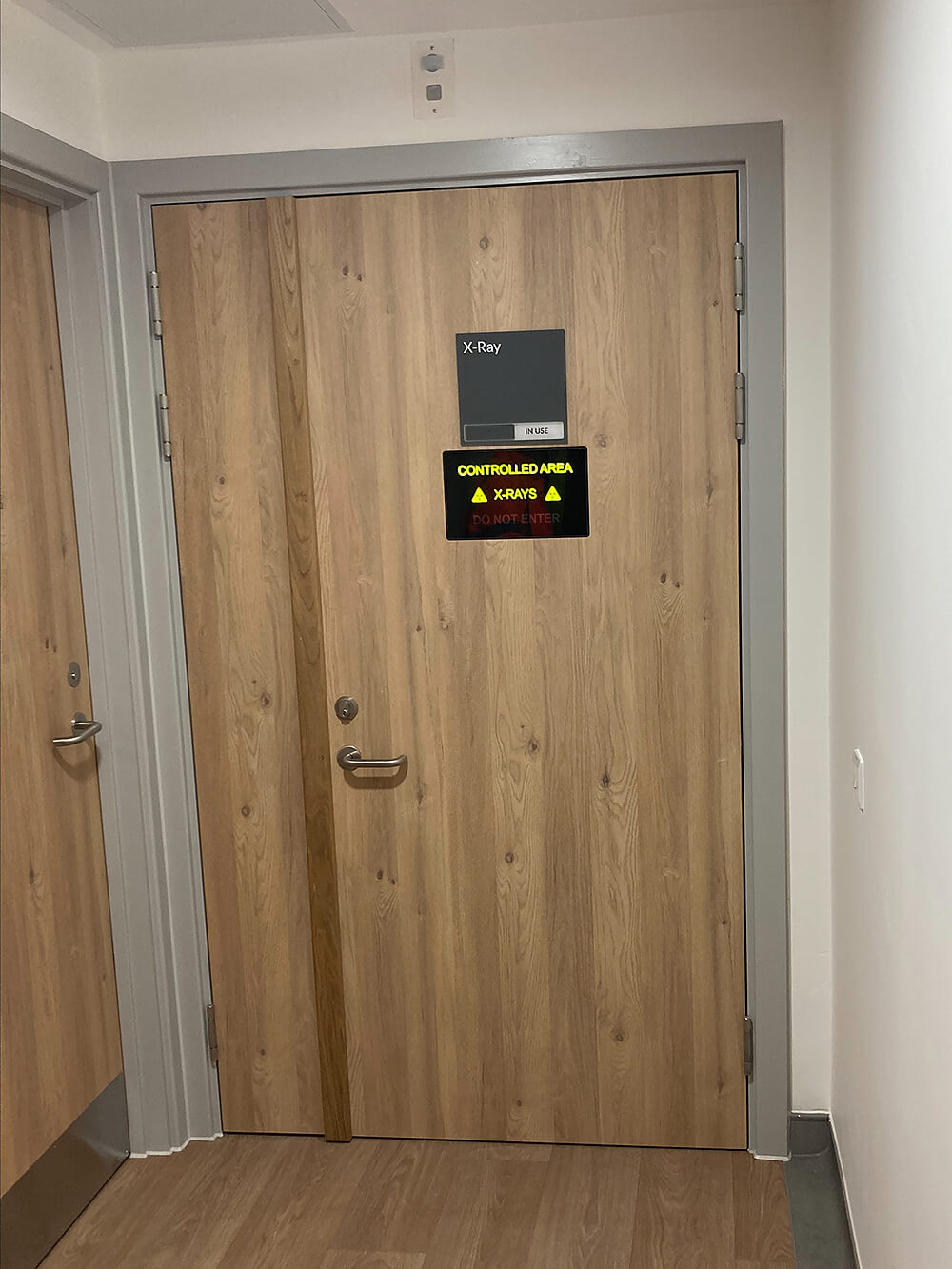

Lead Lined
All Lead Lined doors are lead lined to achieve effective shielding from X-rays. Depending on the level of protection needed, lead thickness can range from code 3 up to code 8.
All door cores have been tested to 1,000,000 cycles to BS EN 1191 (with classification according to BS EN 12400). This is the highest grading possible in the British Standard of Mechanical Tests for ‘hinged or pivoted doors.
- BM Trada Certified
- Severe Duty Solid Door Core
- NFR / FD30 / FD30s / FD60 / FD60s / FD90s / FD120s
- Veneer / Laminate / Pvc
- Acoustic Rated up to 47Db
- X-Ray Controlled Signage Options
- Vision Panel Options
